Pre-workshop Instructions

LIEC - CS WORKSHOP

Published

February 11, 2025

1 General requirements

Please bring the following:

  • 💻 a laptop/computer
  • ✏️ a pencil/pen
  • 📄 paper
  • a mug (for coffee of course)

If needed, we can provide pencils, paper and even mugs!

No computer? Not a problem

If you are unable to bring your own computer, feel free to do the practical work with or following another participant 👯. In this case, please send me an email saying so!

2 Software requirements

The majority of the practical aspect of the workshop involves a computer, and therefor using specific tools. If you intend on participating fully, you’ll need to download (or update) these tools in advance. Don’t worry, they’re free and easy to set up! Let’s go!


2.1 The scientific and technical publishing system: Quarto

Quarto is an open-source system for scientific and technical publishing, built on Pandoc1. It allows you to create reproducible documents by integrating code, results, and narrative. Outputs can include HTML, PDF, Word, and more.

To use Quarto, you’ll need to install the Quarto CLI, which handles rendering Quarto documents. Download the latest version from the Quarto website and follow the installation instructions.


2.2 The programming language: R

R is a powerful programming language for data science. You can download it for free from The Comprehensive R Archive Network (CRAN). At the top of the CRAN homepage, you’ll find links for different operating systems: Windows, Mac, or Linux.

If you’re having trouble in orientating the sites, don’t worry! Below I provide detailed instructions for each operating system:

Download for Windows

To install R on Windows, click the “Download R for Windows” link. Then click the “base” link. Next, click the first link at the top of the new page. This link should say something like “Download R-4.4.2 for Windows”, except the 4.4.2 will be replaced by the most current version of R. The link downloads an installer program, which installs the most up-to-date version of R for Windows. Run this program and step through the installation wizard that appears. The wizard will install R into your program files folders and place a shortcut in your Start menu. Note that you’ll need to have all of the appropriate administration privileges to install new software on your machine.

Download for MacOS

To install R on a Mac, click the “Download R for Mac” link. Next, click on the R-4.4.2 package link (or the package link for the most current release of R). An installer will download to guide you through the installation process, which is very easy. The installer lets you customize your installation, but the defaults will be suitable for most users. I’ve never found a reason to change them. If your computer requires a password before installing new progams, you’ll need it here.

Download for Linux

R comes preinstalled on many Linux systems, but you’ll want the newest version of R if yours is out of date. The CRAN website provides files to build R from source on Debian, Redhat, SUSE, and Ubuntu systems under the link “Download R for Linux.” Click the link and then follow the directory trail to the version of Linux you wish to install on. The exact installation procedure will vary depending on the Linux system you use. CRAN guides the process by grouping each set of source files with documentation or README files that explain how to install on your system.


2.3 The IDE2: Rstudio

RStudio is an application like Microsoft Word—except that instead of helping you write in English or French, RStudio helps you write in R.

You can download RStudio for free. Just click the “Download RStudio Desktop For [Your OS]” button and follow the installation steps. Once installed, open RStudio like any other application—usually by clicking its desktop icon.

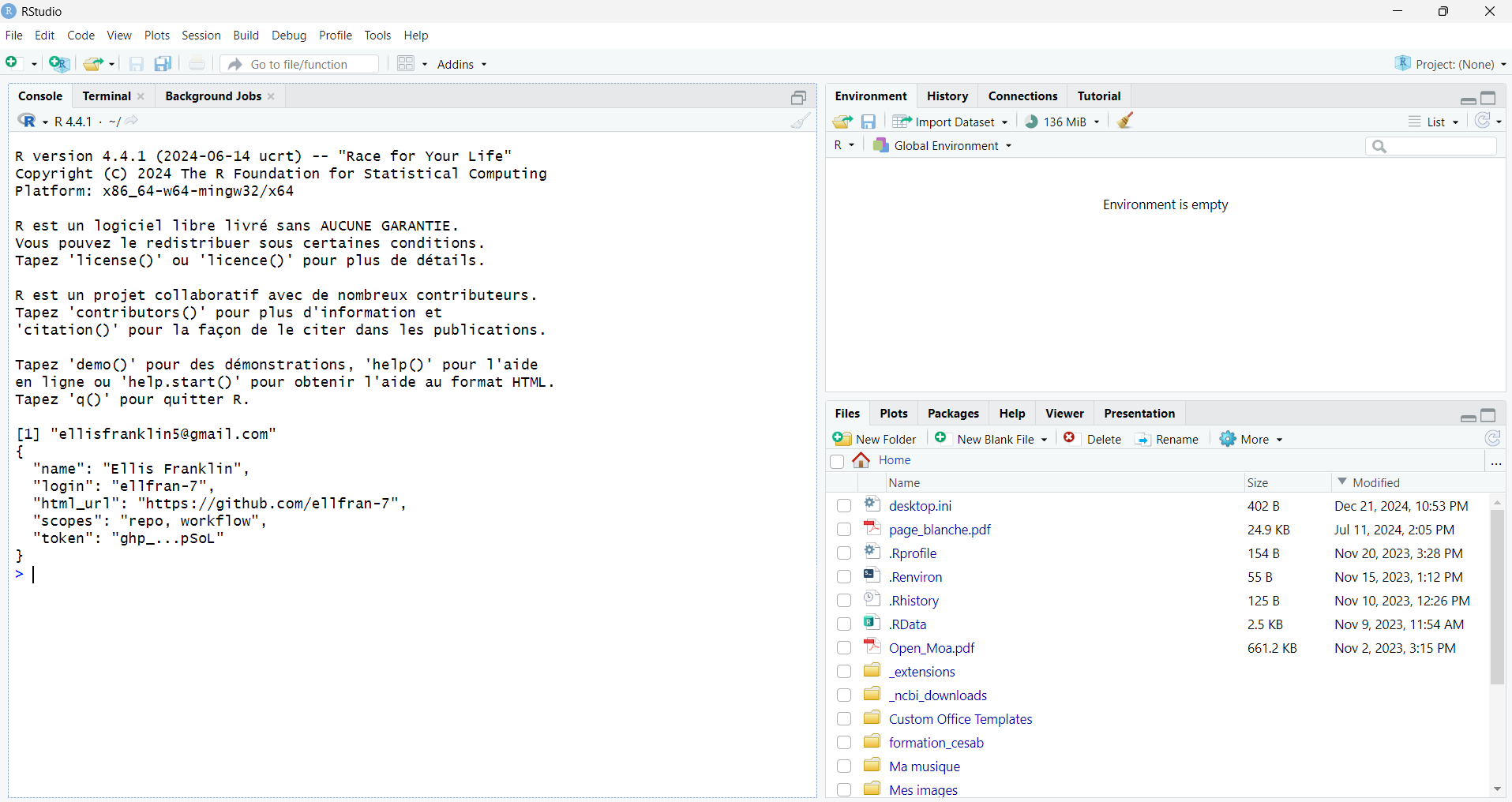

When you open RStudio, you’ll see a window with three panes, as shown below: (Figure 1):

Figure 1: The Rstudio IDE for R


2.4 The toolset: R packages

R packages are collections of functions, data, and documentation that expand R’s capabilities. To work with Quarto in R, ensure the following packages are installed:

  • ggplot2
  • quarto
  • knitr
  • rmarkdown

To check and install these packages, run the following code in RStudio (in the console pane, shown on the left of Figure 1):

packages <- c("ggplot2", "quarto", "knitr", "rmarkdown")
installed <- packages %in% rownames(installed.packages())

if (any(!installed)) {
  message("Missing some packages...")
  install.packages(packages[!installed])
} else {
  message("Everything is good to go!")
}


2.5 Finish line

If you encounter any issues with downloads or installations, feel free to email me at ellis.franklin@univ-lorraine.fr or visit me directly at the Metz site in the P7 building, office M3.

If you’ve successfully set everything up, you’re ready for the workshop! Congratulations! 🎉

See you on the 6th of Feb! 🐧

(back to top)

Footnotes

  1. Pandoc is a tool that converts documents to different formats. Quarto leverages it to convert markdown to a variety of output formats.↩︎

  2. Integrated Development Environment↩︎
